Swing Hydraulic Cylinder

Name: "Swing Hydraulic Cylinder"
Rating: 5 (767 reviews)

SKU: 6685525134

Model: SB08 Series

Product Details

Product Specification

Type	Dual Gear Rack Swing Hydraulic Cylinder	Model	SB08 Series
Params	Cylinder Diameter: 40 mm – 320 mm Output Torque (MA max): 1,460 N·m – 651,440 N·m Working Port (O1): G1/2 – G1 1/2 Test Port (TP1, TP2): M22×1.5 – M48×2	Scope	Length Range (L0): 275 mm – 1920 mm Mounting Width (W1): 180 mm – 450 mm Swinging Angle: Customizable based on requirements
Material	High-strength Alloy Steel / Cast Iron / Preferred Quality Steel	Applicable Industry	Industrial Automation: Robot arm rotation, Fixture turnover, Material transposition Construction Machinery: Excavator rotary platform, Crane rotary mechanism Energy Field: Hydraulic actuation of valves or gates Special Equipment: Ship steering gear, Heavy vehicle steering system

Feature

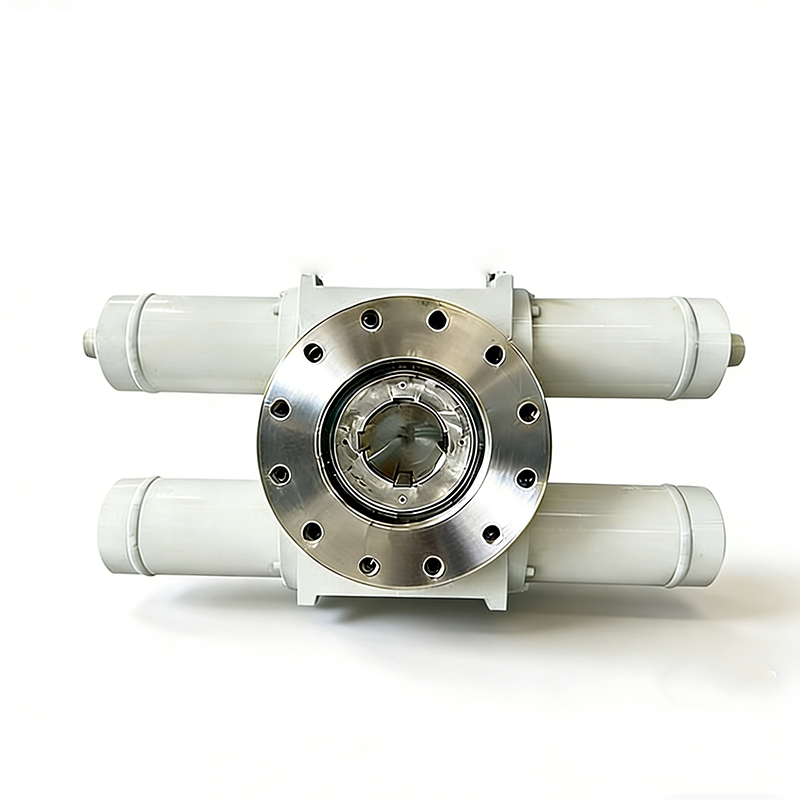

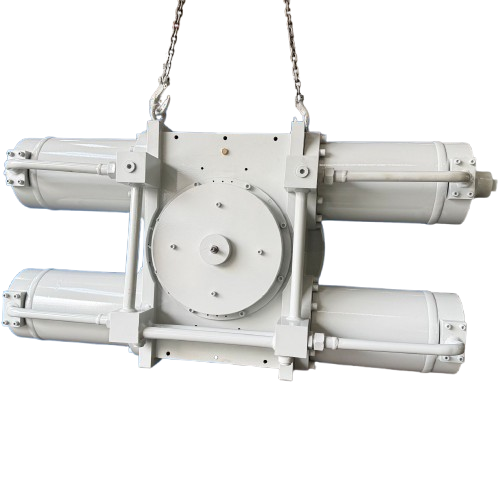

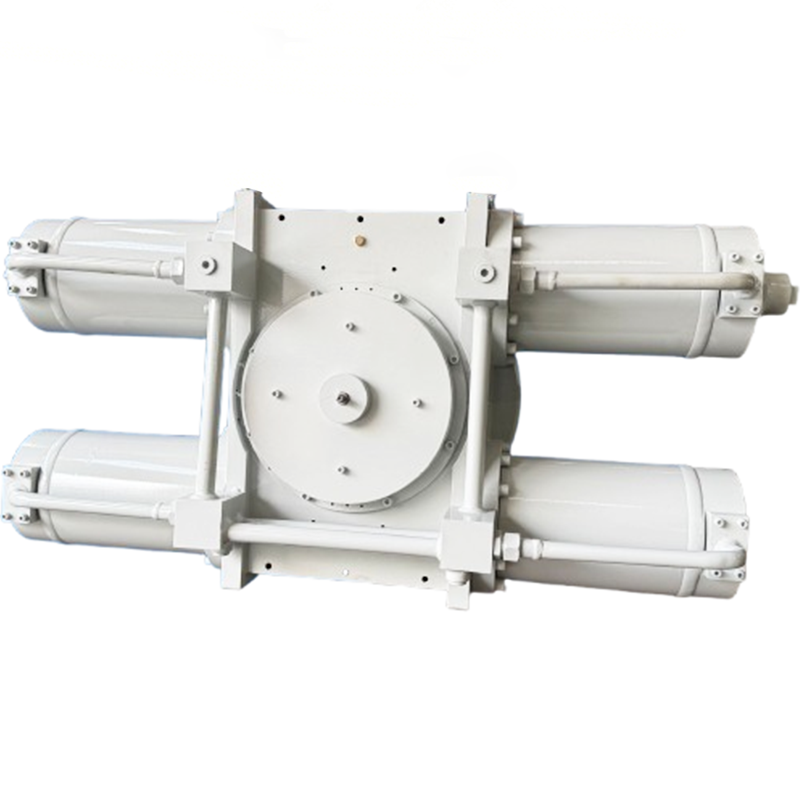

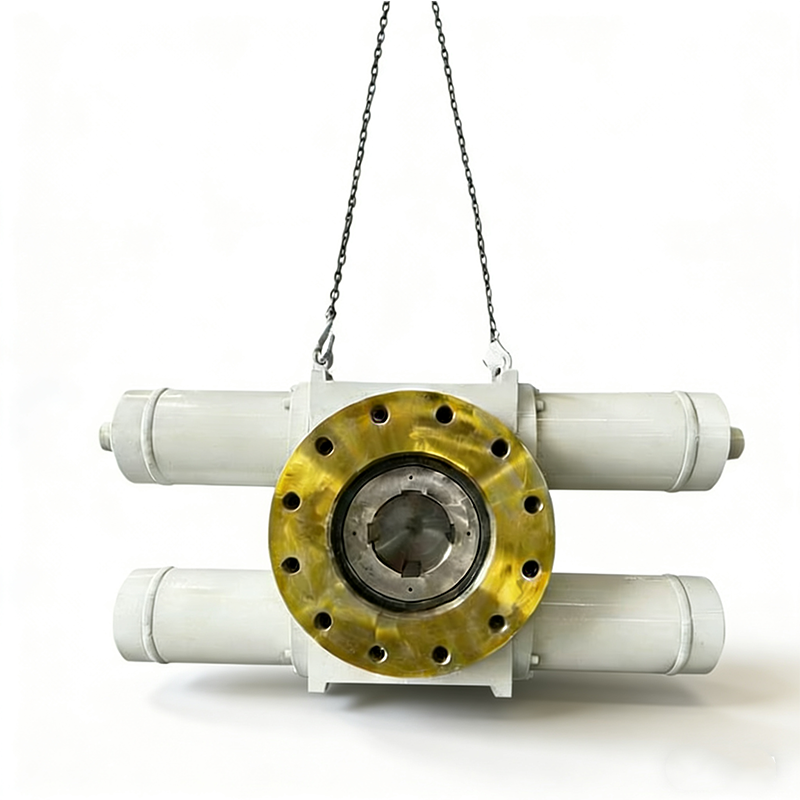

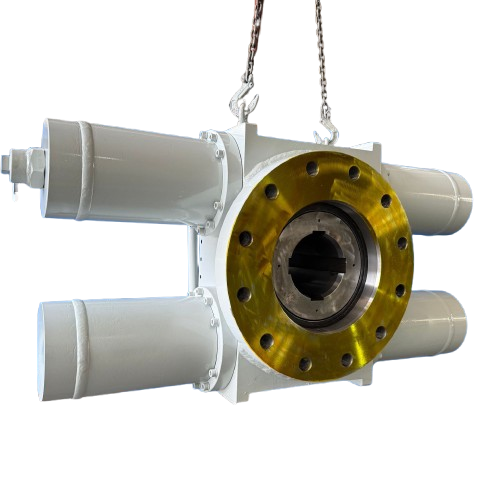

Built for ultra-heavy-duty operations, this dual gear rack hydraulic cylinder employs a balanced four-cylinder architecture driving dual parallel racks to generate massive, bidirectional torque. Featuring a heavy-duty flange output and exceptional resistance to high mechanical shocks, it delivers robust, balanced rotational power for the most demanding harsh-duty environments.

SWING GEAR HYDRAULIC CYLINDER
